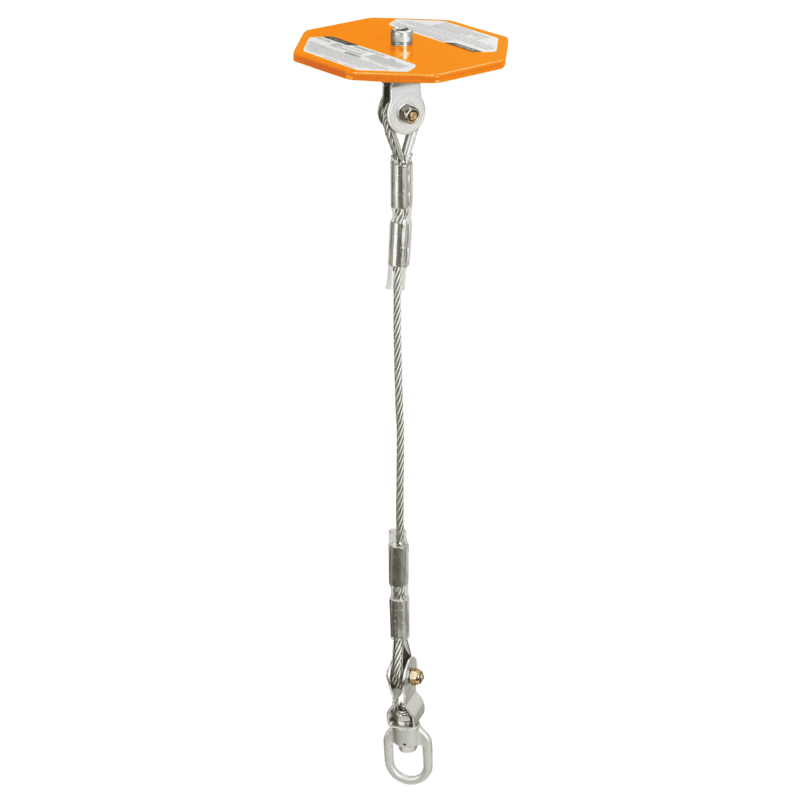

Description
- Installs through overhead openings in steel deck, concrete or grating
- 6″ x 6″ x 1/4″ high-visibility steel load-bearing plate.
- 1/4″ galvanized steel cable with swivel connection eye
- Assembled with steel thimbles and swaged aluminum ferrules
- Complies with ANSI Z359.18-2017
Material Specifications
Cable: 1/4″ galvanized steel; 5,000 lb min. static strength
Plate: Powder coated carbon steel
Performance Specifications
Static Strength: 5,000 lb min.
ANSI User Capacity: 130 to 310 lb max.
OSHA User Capacity: 130 to 425 lb max.
